Noxway

A lightweight, self-contained API gateway written in Go. All configuration is managed through a built-in web admin panel — no config files, no external dashboards.

Features

Routing

• Path-based reverse proxy with per-service sub-endpoints
• Header-based routing (route by request header value)
• WebSocket proxying (enable per endpoint)
• Custom timeout per endpoint
• Service IP whitelist

Security

• Web Application Firewall (WAF) per service: SQLi, XSS, Path Traversal, Command Injection, body size limiting
• JWT pre-check on endpoints (validate inbound JWTs before forwarding)
• IP ban list (exact IP or CIDR range)
• System whitelist for admin access (IP or DNS hostname)
• Rate limiting with per-IP sliding window
• TLS support with Let's Encrypt integration

Admin panel

• Built-in HTMX-based UI at /admin
• Live dashboard with request stats and charts
• Full service/endpoint CRUD
• Gateway configuration editor
• WAF configuration per service
• Access log viewer
• Embedded in the binary — no separate frontend process

Infrastructure

• Single binary, no runtime dependencies
• PostgreSQL for all config and logs — no JSON files at runtime
• Docker-ready

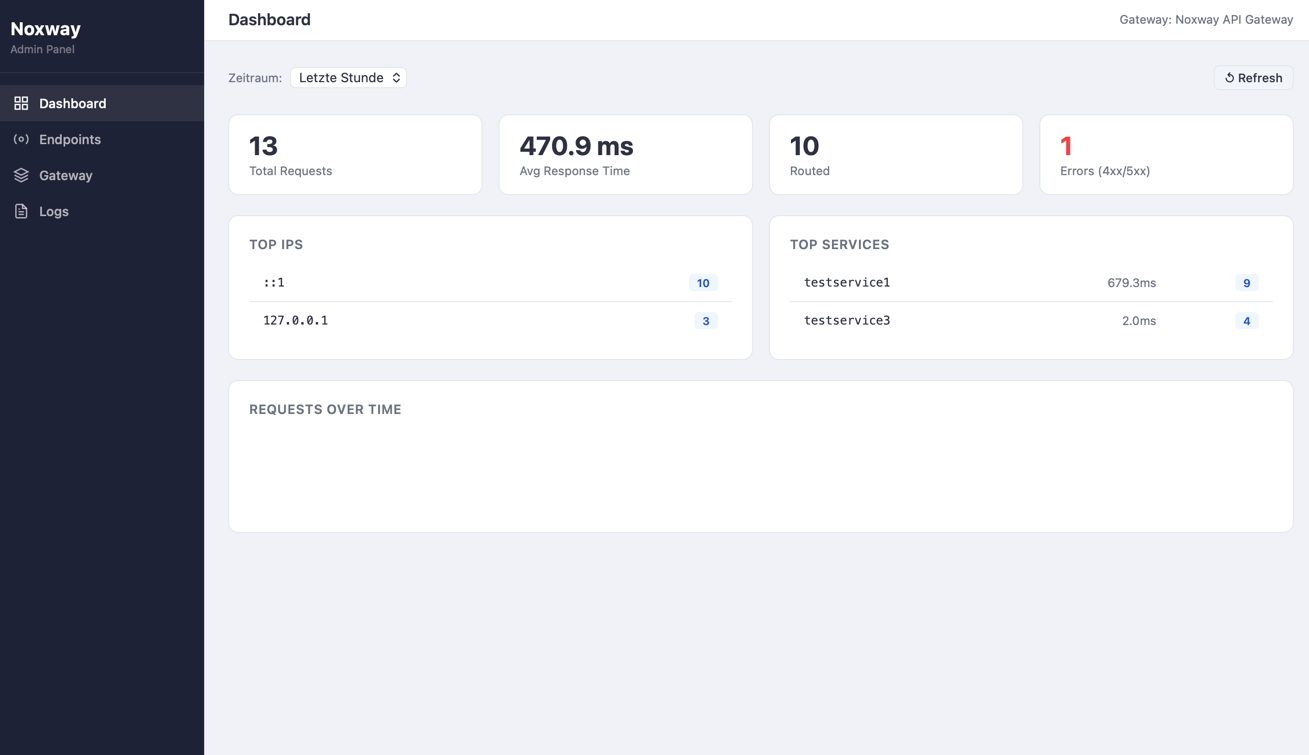

Screenshots

Quick start

1. Create your .env file

cp .env.example .env

Edit .env and set strong values for both secrets:

POSTGRES_PASSWORD=your_secure_db_password
JWTSECRET=your_very_long_random_secret

Generate a secure JWT secret:

openssl rand -hex 32

2. Start

docker compose up -d

The gateway and PostgreSQL start automatically. On first boot, default configuration is written to the database.

3. Set the admin password

Default credentials are admin / admin. Change the password and configure the admin IP whitelist immediately:

curl -X POST http://localhost:8080/setAdmin \
  -H "Content-Type: application/json" \
  -d '{
    "password": "admin",
    "newpassword": "your_new_password",
    "whitelist": ["YOUR_IP_ADDRESS"],
    "dnswhitelist": []
  }'

whitelist restricts which IPs can access the admin panel and management API. Use [] to allow all IPs (not recommended for production).

4. Open the admin panel

http://localhost:8080/admin

Environment variables

docker-compose.yml

services:

  noxway:
    build: .
    ports:
      - "8080:8080"
      - "443:443"
    volumes:
      - ./certs:/app/certs
      - ./log:/app/log
    env_file:
      - .env
    environment:
      DATABASE: "postgres://noxway:${POSTGRES_PASSWORD}@db:5432/noxway?sslmode=disable"
    restart: unless-stopped
    depends_on:
      db:
        condition: service_healthy

  db:
    image: postgres:16-alpine
    environment:
      POSTGRES_DB:       noxway
      POSTGRES_USER:     noxway
      POSTGRES_PASSWORD: "${POSTGRES_PASSWORD}"
    volumes:
      - db_data:/var/lib/postgresql/data
    restart: unless-stopped
    healthcheck:
      test: ["CMD-SHELL", "pg_isready -U noxway -d noxway"]
      interval: 5s
      timeout: 5s
      retries: 10

volumes:
  db_data:

Configuration

All configuration is persisted in PostgreSQL and managed through the admin panel. No JSON files are used at runtime.

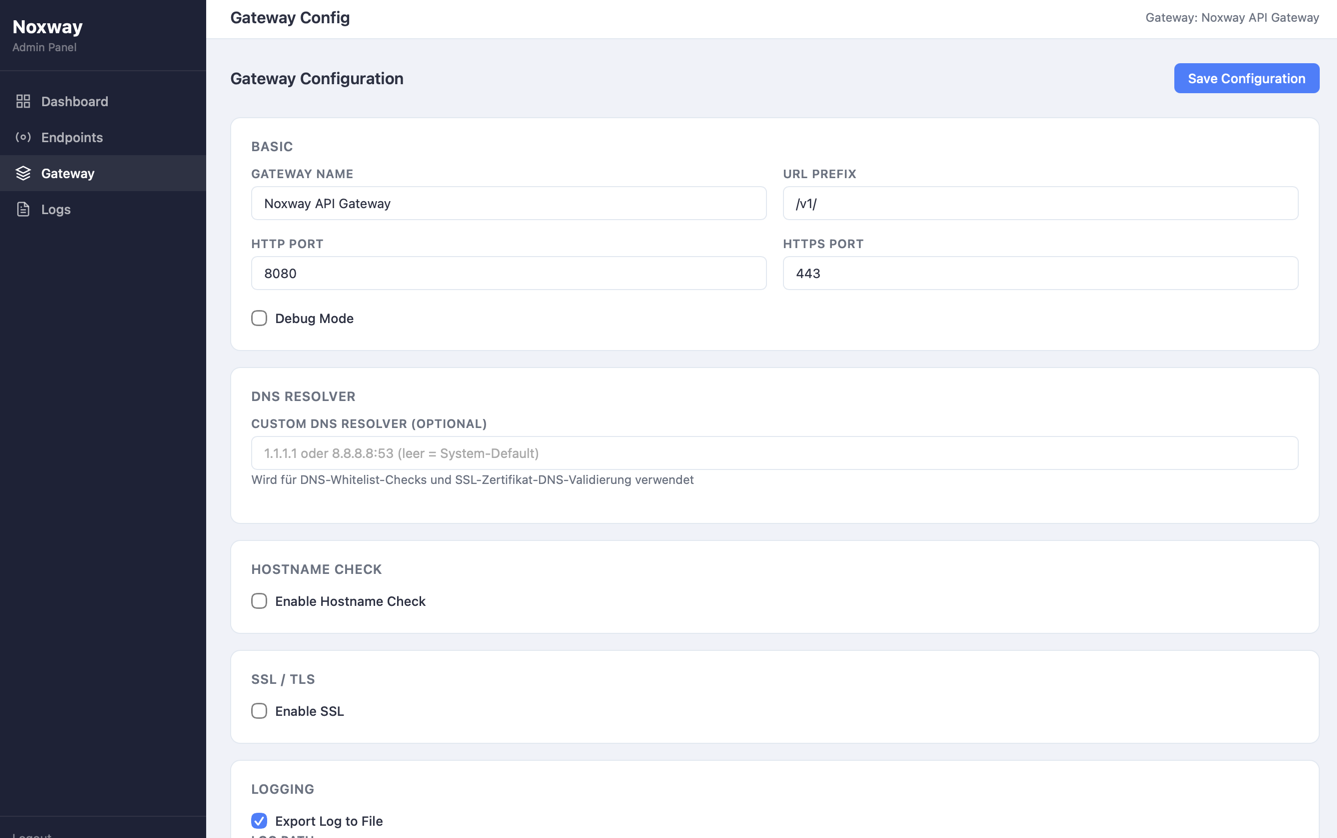

Gateway settings (/admin/gateway)

Services & Endpoints (/admin/endpoints)

Each service maps to a URL path prefix and has one base endpoint plus optional sub-endpoints.

Sub-endpoints are matched by request header value — e.g. route X-System: dev to a staging backend while all other traffic goes to the base endpoint.

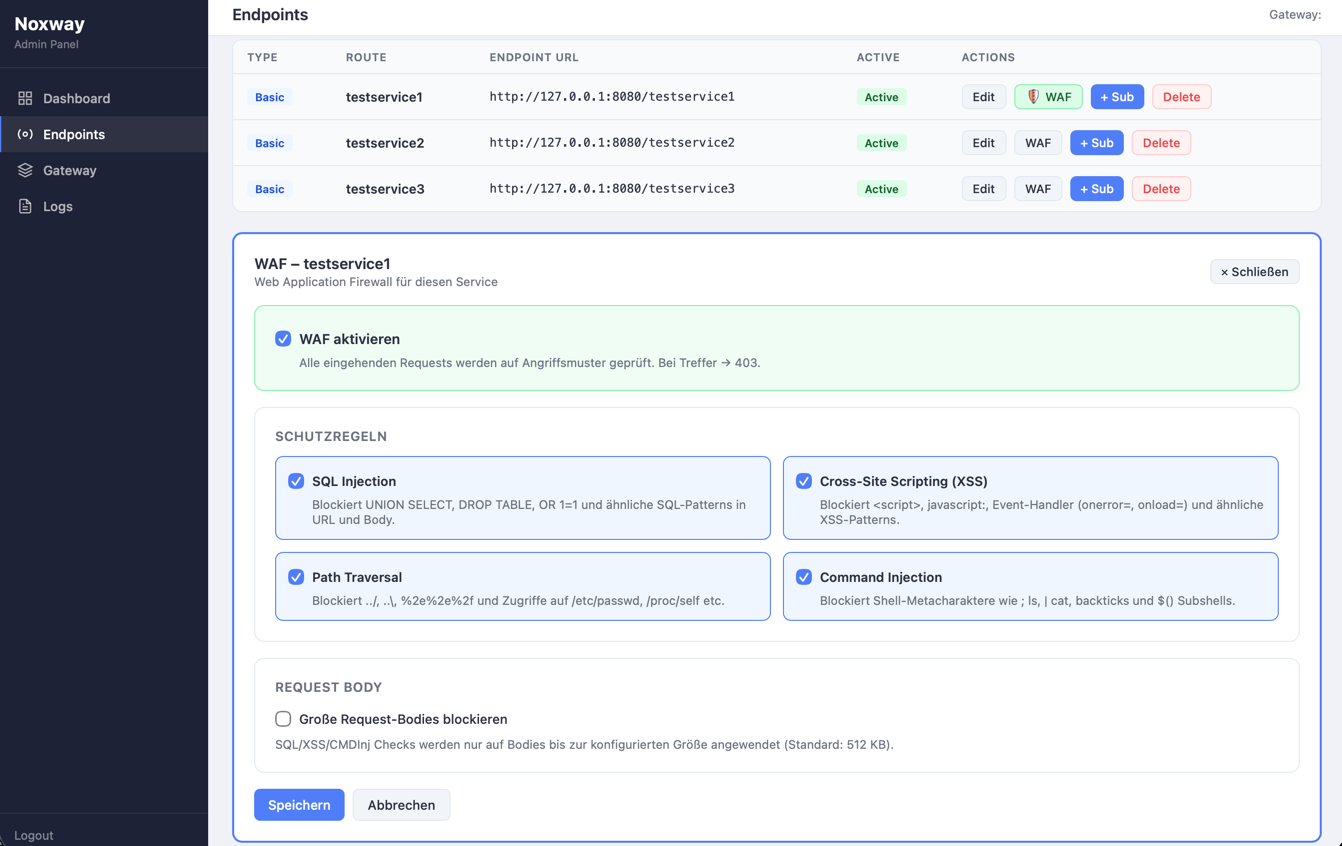

WAF (/admin/endpoints → WAF button)

Configured per service. When enabled, every request is inspected before forwarding.

Routing

Requests are matched by URL path prefix:

https://your-gateway.com/v1/{service}/{rest...}

A service named api with endpoint http://backend:3000 proxies:

GET /v1/api/users/123  →  GET http://backend:3000/users/123

WebSocket connections use the same URL — enable the WebSocket Proxy flag on the endpoint and the gateway bridges the connection transparently (http:// → ws://, https:// → wss://).

Docker volumes

Development

Requires Go 1.23+ and a running PostgreSQL instance.

# Start a local database
docker run -d \
  --name noxway-dev-db \
  -e POSTGRES_DB=noxway \
  -e POSTGRES_USER=noxway \
  -e POSTGRES_PASSWORD=devpassword \
  -p 5432:5432 \
  postgres:16-alpine

# Run the gateway
export DATABASE="postgres://noxway:devpassword@localhost:5432/noxway?sslmode=disable"
export JWTSECRET="dev-secret-at-least-32-chars-long"
go run .

Production checklist

• JWTSECRET is a random string of at least 32 characters (openssl rand -hex 32)
• POSTGRES_PASSWORD is strong and unique
• Admin IP whitelist is set to your actual management IPs
• Default admin password has been changed via /setAdmin
• SSL is enabled with a valid certificate
• Port 5432 is not exposed outside the Docker network

Screenshots

License
